Secondary room

On/Off lighting, daylight controlled

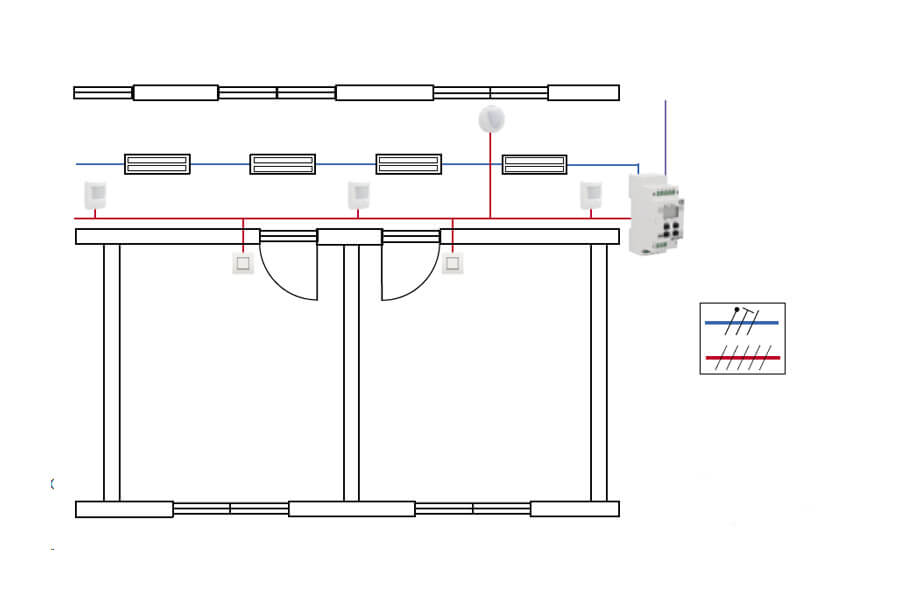

Principle for secondary room with On/Off daylight control. Override of lighting control with 230 V push-button.

Functionalities

The installation has one zone for On/Off daylight control. All luminaires are equipped with standard drivers without dimming. Various options: Automatic On/Off via the detector or manually On/Off by 230 V push-button with automatic off by the detector. Automatic On/Off: The lighting will switch on automatically when someone enters the room and the lux level is below set-point and it will switch off automatically after a fixed period of time.

Featured products

Alternative solutions

• Larger detection range, 32-37 m: Master 353-701121, secondary 353-701021
• Surface mounted detector, 12-13 m: Master 353-602121, secondary 353-602021
• Flush box mounting detector, 12-13 m: Master 353-600121, secondary 353-600021
• Flush box mounting detector, 32-37 m: Master 353-700121, secondary 353-700021
• Wireless override option: Niko dimmer switch, Bluetooth®: 360-21001
