Office with standby minimization

Dimmable daylight control in two zones, rim lighting in zone 3, standby minimisation

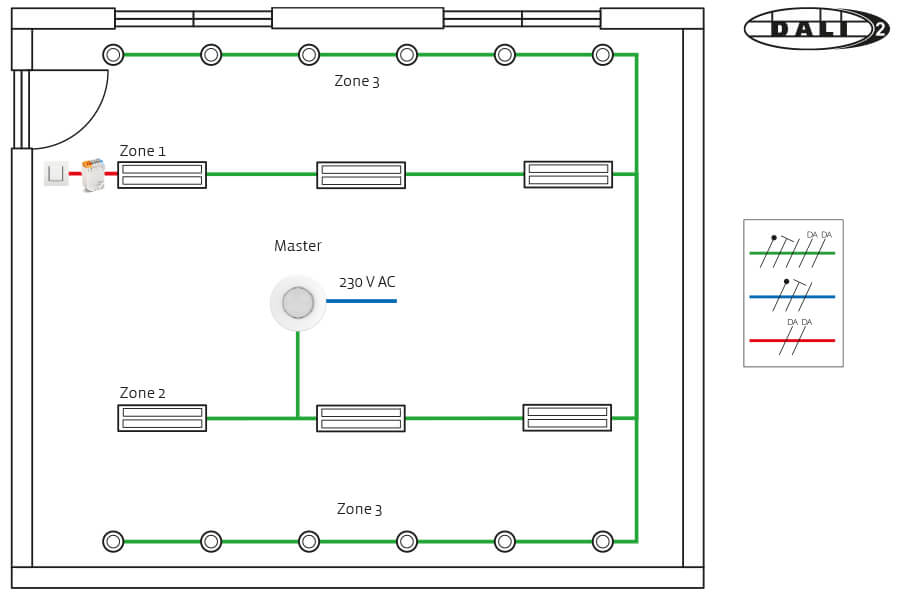

Principle for an office with daylight in two zones. Dimmable main lighting can be overridden either via a DALI-2 push button interface or a 230 V push-button.

Functionalities

The installation has two zones for daylight control and one zone for rim lighting (effect lighting). All luminaires have DALI-2 drivers designed for dimming.

The internal relay of the detector is used to switch off power to the luminaries, so that the standby consumption for all luminaires is eliminated when there is no one in the room.

The light can either turn on automatically at presence or manually by pressing a 230 V push-button or via DALI-2 push button interface. The light will switch off after a predefined period of time after the room has been left.

Change of the colour temperature can be added to dimmable zones, manually change, presets or automatically (HCL), DALI-2 DT8 luminaries are required.

Featured products

Alternative solutions

• Extension of the detection range, 32-37 m: Secondary 353-751021
• Minor detection range, 12-13 m: Master 353-651421, secondary 353-651021
• Surface mounted detector, 32-37 m: Master 353-752421, secondary 353-752021
• Wireless override option: Niko dimmer switch, Bluetooth®: 360-21001
