Office with daylight control

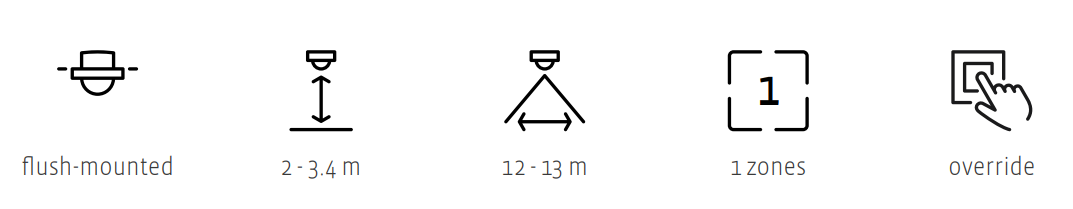

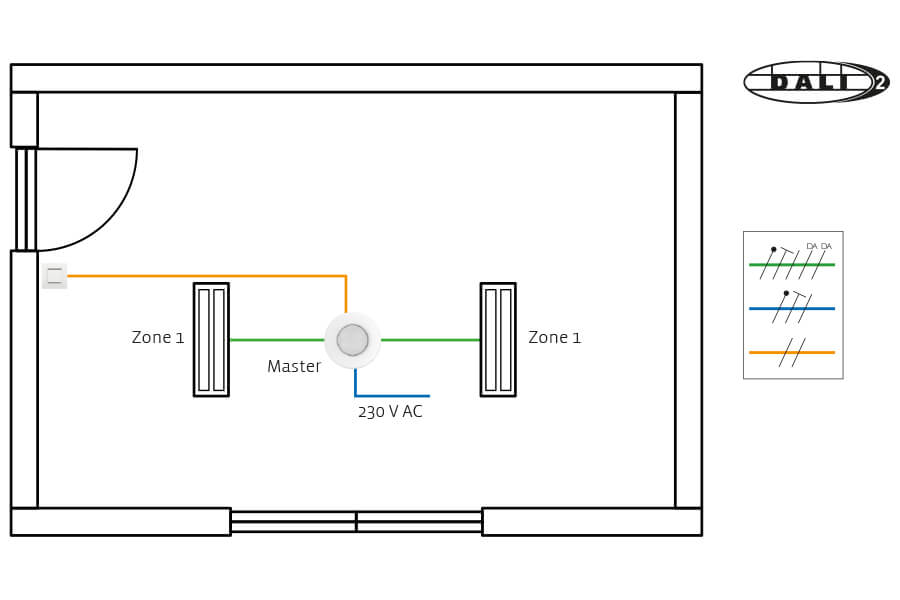

Principle for office with dimmable daylight control in one zone override option via a 230V push button

Principle for classroom with blackboard lighting. Dimmable main lighting in two daylight zones + On/Off blackboard lighting. Main lighting and board lighting can be overridden via a 230 V push-button.

Functionalities

The installation has of one zone for daylight control. The luminaires in the daylight zone are equipped with DALI-2 drivers designed for dimming.

The lighting in the daylight zone can be switch on automatically at presence, or by manually pressing the 230 V button. The light will switch off after a predefined period of time after the room has been left. Daylight control can be overridden via 230 V pushbutton.

Featured products

Alternative solutions

• Extension of the detection range, 12-13 m: Secondary 353-651021
• Major detection range, 32-37 m: Master 353-751321, secondary 353-751021
• Surface mounted detector, 12-13 m, master: 353-652321, secondary 353-652021
• Wireless and battery-free push button, Bluetooth®: 360-21001
