Conference room with power cut off, socket

Dimmable daylight control in two zones, two zones with rim light and board lighting, power cut-off of wall socket

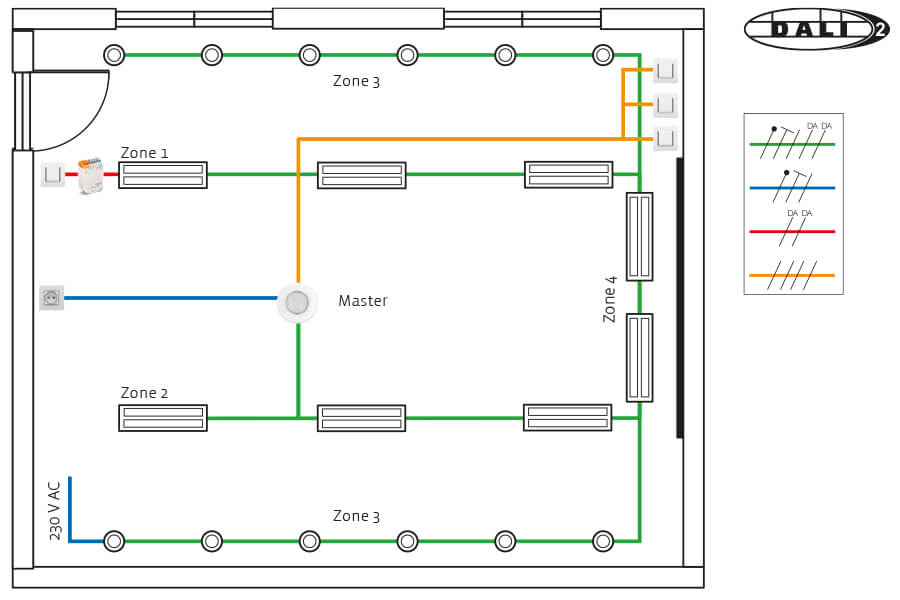

Principle for conference rooms with dimmable daylight control in two zones and one zone, with dimmable rim lighting and one zone for board lighting and as well as power cut-off to a selected wall socket. Override with DALI-2 push button interface and 230V push-button.

Functionalities

The installation has two zones for daylight control, a zone for rim lighting and a zone for board lighting. All luminaires are equipped with DALI-2 drivers designed for dimming.

The lighting can either turn on automatically at presence or manually by operating the 230 V push-button or via DALI-2 push button interface. The light will switch off after a fixed period of time after the room has been left.

Daylight control can be overridden either via 230 V push-button or DALI-2 push button interface. The solution enables wireless communication between the detector and wireless battery-free push-buttons, thus wiring to pushbuttons in e.g. glass walls or partition walls is not necessary.

Change of the colour temperature can be added to dimmable zones, manually change, presets or automatically (HCL), DALI-2 DT8 luminaries are required.

Featured products

Alternative solutions

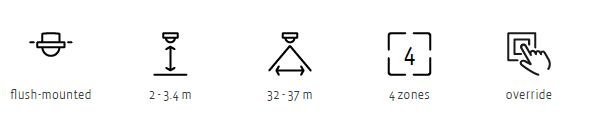

• Extension of the detection range, 32-37 m: Secondary 353-751021
• Minor detection range, 12-13 m: Master 353-651421, secondary 353-651021
• Surface mounted detector, 32-37 m: Master 353-752421, secondary 353-752021
• Wireless override option: Niko dimmer switch, Bluetooth®: 360-21001
