Conference room with folding door

Daylight control in three zones, lighting control in conference with folding door.

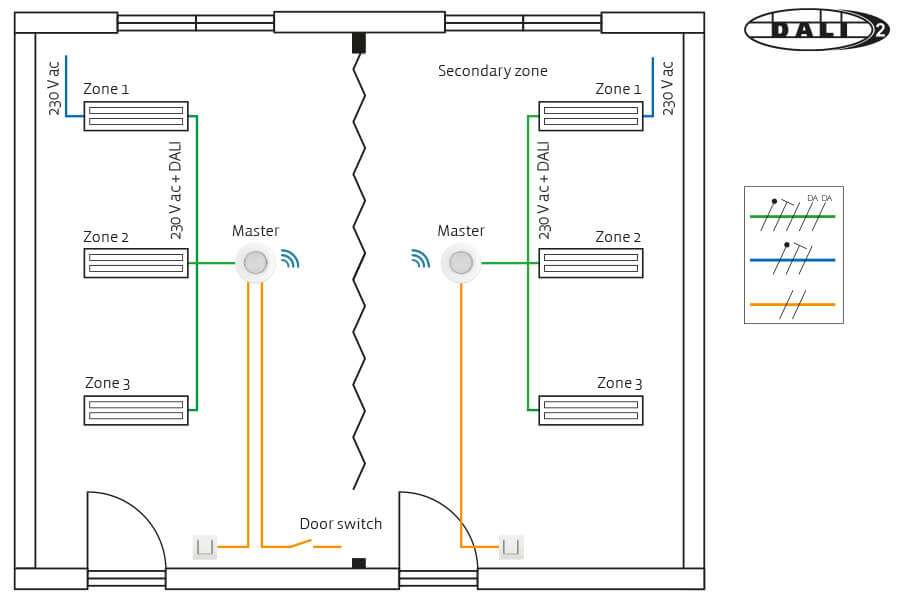

Principle for lighting control in conference room with folding door.

Functionalities

The installation in both rooms has three zones for daylight control. All luminaires are equipped with DALI-2 drivers designed for dimming. A wireless Bluetooth® communication between the master detectors is connecting the lighting control in the divided rooms. When the folding door is open the lighting is overridden uniformly in the joined room. When the folding door is closed the daylight control operates independently of one another in the two rooms. A door switch connected to one of the master detectors is registering whether the folding door is open or closed.

The lighting can either turn on automatically at presence, or by operating the 230 V push-button. The lighting will automatically switch off after a set time when the last person has left the room. The daylight control can be overridden by the 230V pushbutton. The solution enables wireless communication between the detector and wireless and battery-free push-buttons, thus wiring to push-buttons in e.g. glass walls or partition walls is not necessary

Featured products

Alternative solutions

• Extension of the detection range, 32-37 m: Secondary 353-751021
• Minor detection range, 12-13 m: Master 353-651421, secondary 353-651021
• Surface mounted detector, 32-37 m: Master 353-752421, secondary 353-752021
• Wireless override option: Niko dimmer switch, Bluetooth®: 360-2100
