Classroom with board lighting and desk lighting

Dimmable daylight control in three zones; board lighting and desk lighting in two zones

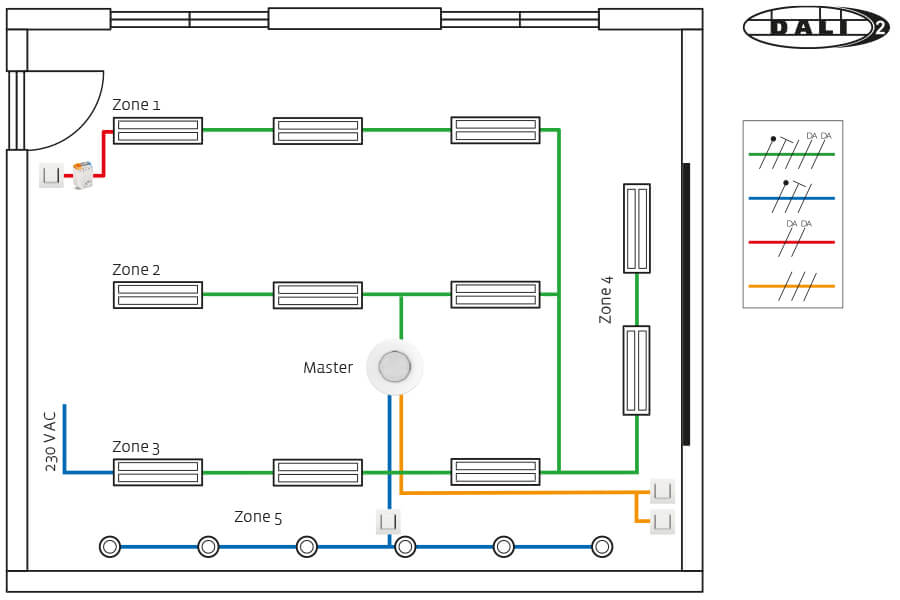

Principle for classroom with blackboard lighting and desk lighting. Dimmable main lighting in three daylight zones + dimmable blackboard lighting + option of absence control of desk lighting. Main lighting and board lighting can be overridden either via a DALI-2 push button interface or a 230 V push-button.

Functionalities

The installation includes five zones with the option of two or three daylight zones and one or two no daylight controlled zones, e.g. board lighting, desk lighting, etc.

All luminaires in the daylight zones and board lighting are equipped with DALI drivers designed for dimming. Luminaires for desk lighting (zone 5) are equipped with standard no dimmable drivers.

The desk lighting is controlled with a switch. If the switch is on and someone enters the room, the lighting is switched on automatically. Daylight control can be overridden using either a push-button or via the DALI-2 interface.

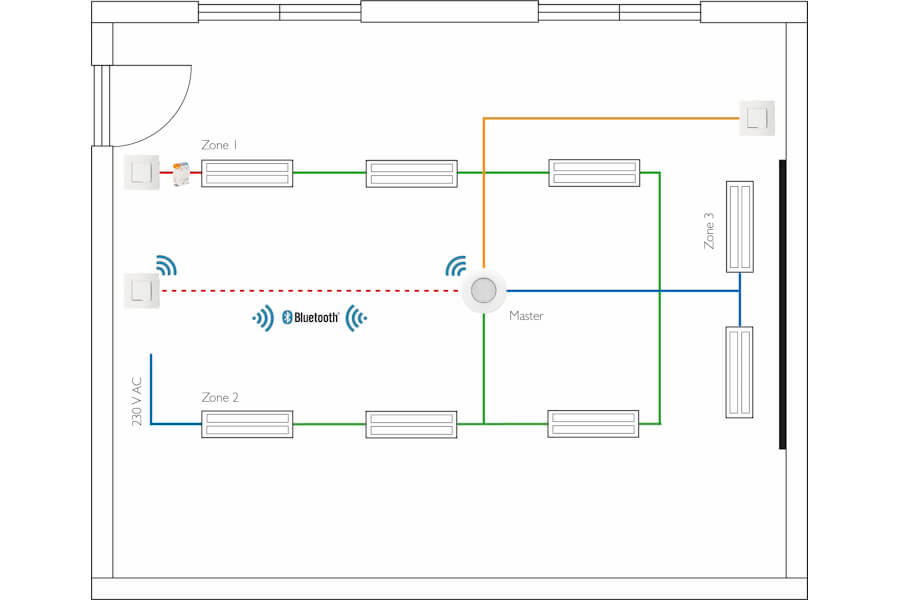

Wireless communication between the detector and push-button is also possible.

Change of the colour temperature can be added to dimmable zones, manually change, presets or automatically (HCL), DALI-2 DT8 luminaries are required.

Featured products

Alternative solutions:

•  Extension of the detection range, 32-37 m: Secondary 353-751021
• Minor detection range, 12-13 m: Master 353-651421, secondary 353-651021
• Surface mounted detector, 32-37 m, master: 353-752421, secondary 353-752021
• Wireless and battery-free push button, Bluetooth®: 360-21001
