Corridor with alarm function

Daylight control in one zone in the corridor with alarm function

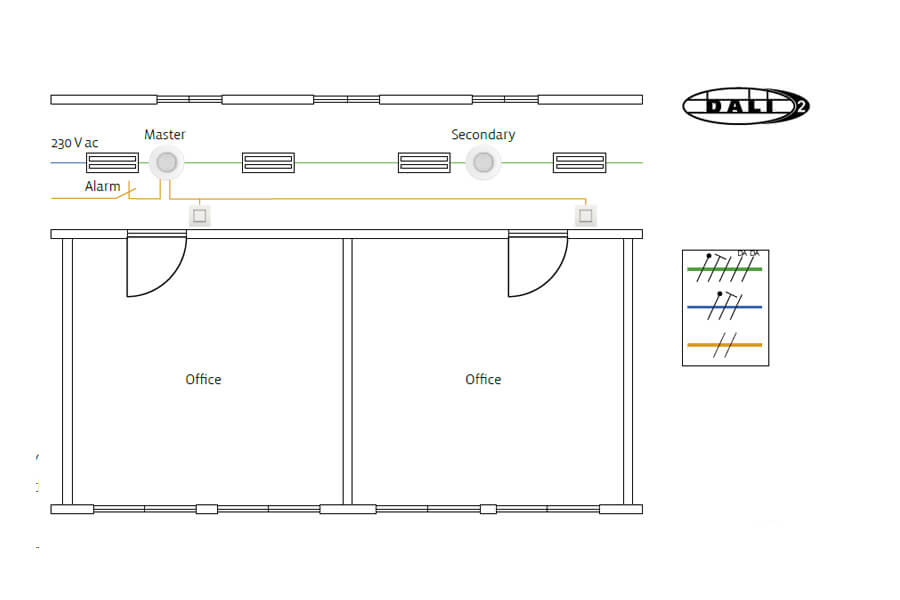

Principle for dimmable daylight control in the corridor with activation of 100% lighting in of an alarm.

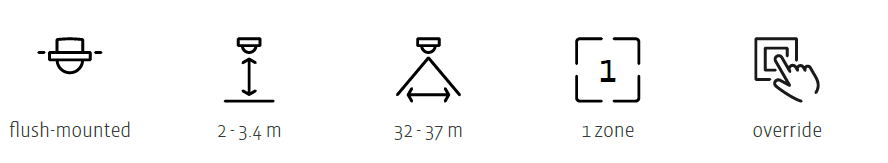

Functionalities

The installation has one zone for daylight control. For example, in case of fire alarm, all luminaires will light at 100 % illumination.

All luminaires are equipped with DALI-2 drivers designed for dimming.

The lighting automatically turns on at presence in the detection area. The lighting is controlled according to incoming daylight. A 230 V push-button can be used to manually override the daylight control (by dimming or turning it off ).

The alarm contact must be connected to one of the input terminals of the master DALI-2 presence detector.

The solution enables wireless communication between the detector and wireless and battery-free push-buttons, thus wiring to push-buttons in e.g. glass walls or partition walls is not necessary.

Change of the colour temperature can be added to dimmable zones, manually change, presets or automatically (HCL), DALI-2 DT8 luminaries are required.

Featured products

Alternative solutions

• Extension of the detection range, 32-37 m: Secondary 353-751021
• Minor detection range, 12-13 m: Master 353-651421, secondary 353-651021
• Surface mounted detector, 32-37 m, master: 353-752421, secondary 353-752021
• Surface mounted detector, 12-13 m, master: 353-652421, secondary 353-652021
• Wireless and battery-free push button, Bluetooth®: 360-21001
