Corridor with adjacent area

Dimmable daylight control, lighting control in adjacent area

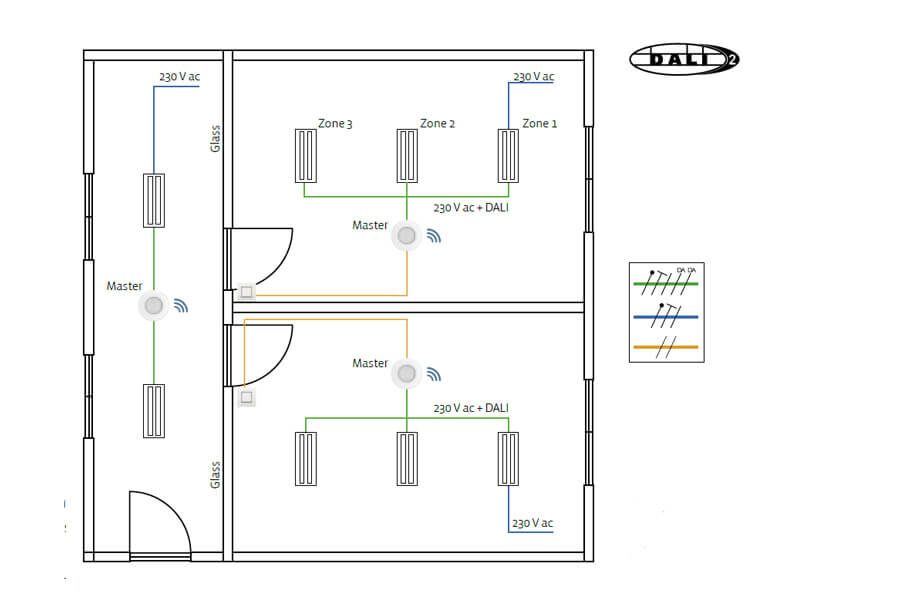

Principle for dimmable daylight control in the corridor with lighting controls in adjacent areas.

Functionalities

The installation has a corridor with one zone for daylight control. All luminaires are equipped with DALI-2 drivers designed for dimming.

If there is presence in one or more offices, the lighting in the corridor is kept at the pre fixed level. If no presence in any of the offices, the lighting is switched off after a fixed period. Bluetooth® does the communication between the master detectors.

Lighting in the offices can either turn on automatically at presence or manually by operating the 230 V push-button. When there is no-one in the room, all lighting is switched off after a fixed period of time. A 230 V push-button can be used to dim or turn off the lighting manually. The lighting in the corridor is turned on and off automatically.

The solution enables wireless communication between detectors and wireless battery-free push-buttons, thus wiring to pushbuttons in e.g. glass walls or partition walls is not necessary.

Change of the colour temperature can be added to dimmable zones, manually change, presets or automatically (HCL), DALI-2 DT8 luminaries are required.

Featured products

Alternative solutions

• Extension of the detection range, 32-37 m: Secondary 353-751021
• Minor detection range, 12-13 m: Master 353-651421, secondary 353-651021
• Surface mounted detector, 32-37 m, master: 353-752421, secondary 353-752021
• Surface mounted detector, 12-13 m, master: 353-652421, secondary 353-652021
• Wireless and battery-free push button, Bluetooth®: 360-21001
