Corridor - wireless communication

On/Off lighting wirelessly controlled

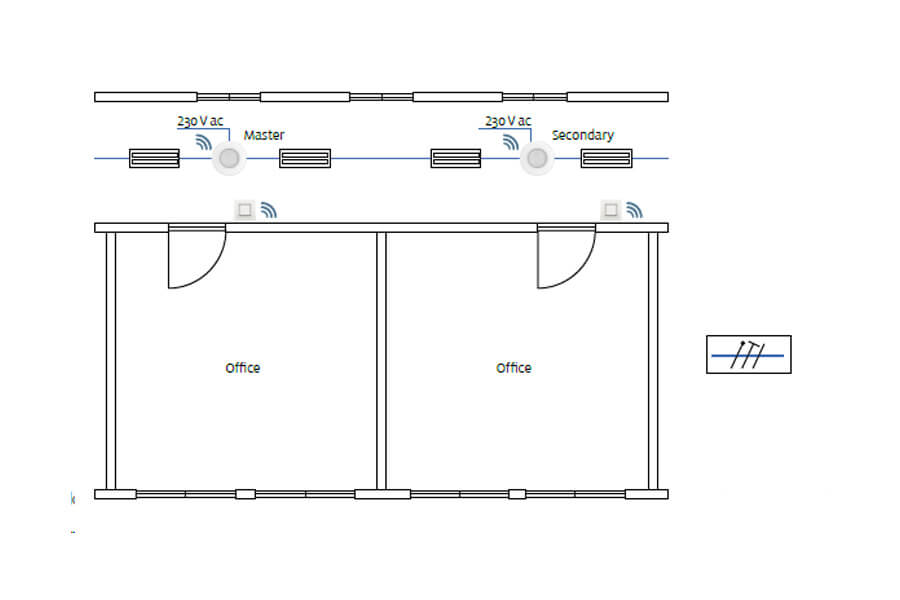

Principle for corridor lighting

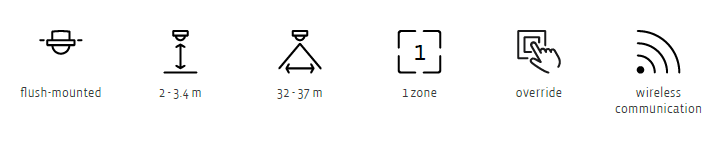

Functionalities

The installation has one zone for on/off daylight control. The luminaires are equipped with standard no dimmable drivers. For registration of activity throughout the length of the corridor, a secondary detector has been added to the master detector. The communication between the master and secondary detector is wireless. The lighting switches on automatically when persons enter the corridor and the lux level is below set value. It turns off automatically after a set time when tnobody is in the corridor.

The solution has a wireless and battery-free Bluetooth® push-button for manually switch on the the light. The master detector will automatically switch the light off after a set of time.

Featured products

Alternative solutions

• Minor detection range, 12-13 m: Master 353-601121, secondary 353-601021
• Surface mounted detector, 32-37 m, master: 353-702121, secondary 353-702021
• Surface mounted detector, 12-13 m, master: 353-602121, secondary 353-602021
• Wireless and battery-free push button, Bluetooth®: 360-21001
