This article is (or will soon be) unavailable. It has been replaced by the following article(s):

LASSO 70D 2

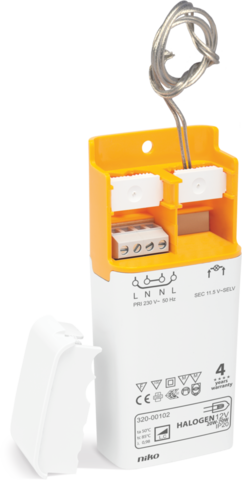

Electronic 70W transformer with terminal connections on the primary side (2x) and a wire connection on the secondary side

Reference code
320-00102

No longer available since January 2022

Technical datasheets
Technical manuals
Inspection certificates
Certificaten CE-Marking

Description

This electronic transformer has a capacity of 70W and is universally dimmable. It is suitable for the connection of low-voltage loads (12 V). On the primary side, the two inputs make interconnection easy (max. 8x). The Teflon wire on the secondary side can be directly connected to a low voltage lamp. The easy-to-mount click cap ensures strain relief. The transformer is extremely compact and is therefore very well-suited for installation in small spaces. This transformer is also suitable for flush mounting in furniture. It is equipped with an integrated thermal protection and an integrated protection against short-circuit, overload and overheating. This transformer has an IP20 protection degree.

Specification description

Electronic 70W transformer with terminal connections on the primary side (2x) and a wire connection on the secondary side

  • Function: electronic transformer
  • Input voltage: 230 Vac ± 10 %, 50 Hz
  • Dimensions (HxWxD): 116 x 52 x 32 mm
  • Primary wire connection: Fourfold primary terminal connection: 1 x 2.5 mm² or 2 x 1.5 mm² per screw terminal
  • Secondary wire connection: teflon wire (200 °C): 2 x 0.75 mm², length 30 cm
  • Number of exits (pairs): 1
  • Maximum wire length secondary connection: 2 m
  • Output voltage: 11.5 Vac, 35 kHz
  • Minimum load: 20 W
  • Maximum load: 70 W
  • Maximum housing temperature (Tc): 80 °C
  • Minimum free space in false ceiling: 100 mm
  • Application: suitable for flush-mounting in furniture
  • Mounting method: flush-mounting
  • Safety protections: self-resetting, built-in protection against short-circuit, overload and overheating
  • Fire safety
    • self-extinguishing: complies with a filament test of 850 °C
    • suitable for normal combustible surfaces
  • Protection degree: IP20
  • Protection class: Class III device: SELV (safety extra low voltage), suitable as a power supply for class III loads
  • Finishing colour: white
  • Material upperframe: plastic
  • Certification marks: ENEC
  • Marking: CE
